3840Hz ULTRA HIGH REFRESH RATE
Experiencelultra-smooth,flicker-free visuals with 3840Hz refresh rate.
BRAND LAMP BEAD
High quality lamp bead shavea longer life and more stable brightness stable brightness
IP53 Protection Rating
Die-Cast Aluminum Cabinet
Basic dust & water resistant,
longer indoor durability
UL Certified Power
And FCC-Compliant Components
Ensuring long-term stable
LED screen operation
HD FULL COLOR
Seamless Splicing · 178° Ultra-wide Angle · High Bright Outdoor HD Visuals
2°
178°
90°

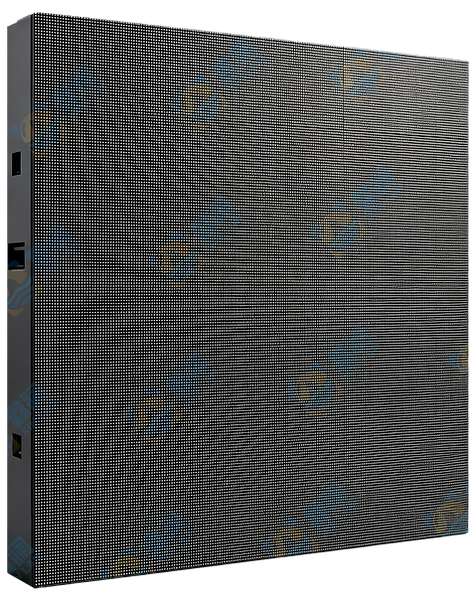

Exterior Of The Cabinet
Custom size available
Front
Side
Back
320mm/1.05ft
160mm/0.52ft
Module Dimensions
LED Pitch：P2|P2.5|P3|P4|P5|P6|P8|P10
The smaller the spacing between pixels, the higher the definition and the better the effect
Installation Method
Support multiple installation methods such as lifting, wall mounted installation, andcolumn shaped installation, suitable for more scenarios
Wall-mounted
Floor-mounted
Recessed
Pillar-mounted
Roof-mounted
Hanging
System Connection Diagram
DISPLAY
Cables
Network Cable
⚡
Processor
HDMI cable
connection
Computer/Mobile Phone/Tablet, etc.

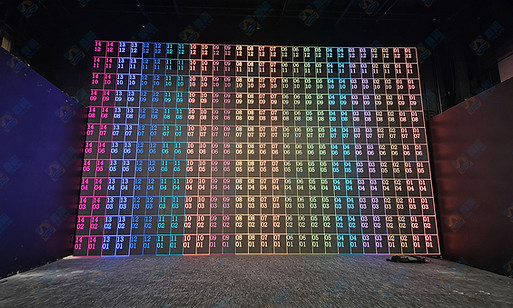

Product Images
P2
250000
320×160
Optional
5500-6000
178°
3840
16S
800W
300W
Die cast aluminum/sheet metal
IP65
Rear Maintenance
-20°C~50°C
≥100000
P2.5
160000
320×160
Optional
5500-6000
178°
1920/3840
32S
800W
300W
P3
111111
320×160
Optional
5500-6000
178°
1920
32S
800W
300W
P4
62500
320×160
Optional
5500-6000
178°
1920
16S
800W
300W
P5
40000
320×160
Optional
5500-6000
178°
1920
16S
800W
200W
P10
10000
320×160
Optional
5500-6000
178°
1920
8S
800W
200W
P8
15625
320×160
Optional
5500-6000
178°
1920
8S
800W
200W
P6
27777
320×160
192×192
Optional
5500-6000
178°
1920
8S
800W
200W
Specifications
Pixel Pitch
Pixel Density (dots/㎡)
Module Size (W×H)
Cabinet Size (mm)
Brightness (cd/m²)
Viewing Angle (H/V)
Refresh Rate (Hz)
Scanning Method
Max Power Consumption (W/㎡)
Avg Power Consumption (W/㎡)
Cabinet Material
Protection Level
Maintenance Support
Working Temperature
Service Life(h)
