3840Hz ULTRA HIGH REFRESH RATE
Experiencelultra-smooth,flicker-free visuals with 3840Hz refresh rate.
BRAND LAMP BEAD
High quality lamp bead shavea longer life and more stable brightness stable brightness
No Extra Service Space Required
Front Maintenance
Easy Maintenance
Ideal For High-Rise & Narrow Spaces
Versatile For Wall-Mounted & Pillar Applications
IP65 Rated Sturdy Cabinet
Die-cast aluminum / sheet metal
Lighter weight, lower shipping cost
Corrosion and rust resistant
Superior heat dissipation extends lifespan
UL Certified Power
And FCC-Compliant Components
Ensuring long-term stable
LED screen operation
Optional:Auto-Brightness Sensor
No manual adjustment needed, avoid night light pollution fine risks
6000nits (Day)
800nits (Night)
No auto light sensor, manual dimming required, 6000nit harsh glare at night
960mm/3.15ft
140mm/0.46ft
960mm/3.15ft
Front
Side
Standard Product Size
Custom size available
Appearance Details
Wire hole

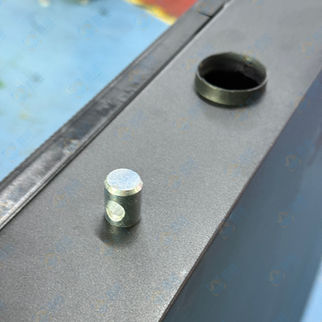

Positioning pin
Wire hole
Heat Dissipation Hole
Splicing Hole
Installation Method
Support multiple installation methods such as lifting, wall mounted installation, andcolumn shaped installation, suitable for more scenarios
Wall-mounted
Floor-mounted
Recessed
Pillar-mounted
Roof-mounted
Hanging
System Connection Diagram
DISPLAY
Cables
Network Cable
⚡
Processor
HDMI cable
connection
Computer/Mobile Phone/Tablet, etc.

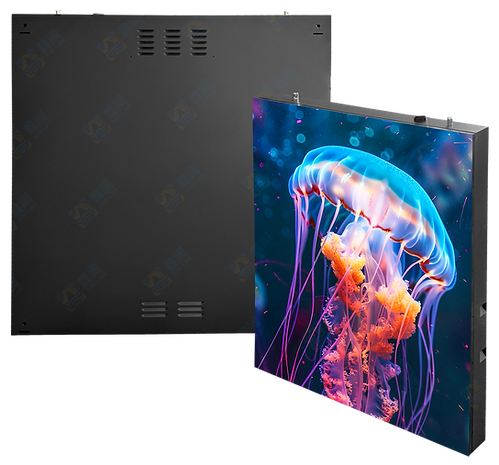

Product Images
P4
62500
320×320
Optional
6000
178°
3840
16S
800W
300W
P5
40000
320×320
Optional
6000
178°
3840
16S
800W
200W
P6
27777
320×320
Optional
6000
178°
3840
8S
800W
200W
Pixel Pitch
Pixel Density (dots/㎡)
Module Size (W×H)
Cabinet Size (mm)
Brightness (cd/m²)
Viewing Angle (H/V)
Refresh Rate (Hz)
Scanning Method
Max Power Consumption (W/㎡)
Avg Power Consumption (W/㎡)
Cabinet Material
Protection Level
Maintenance Support
Working Temperature
Service Life(h)
Die cast aluminum/sheet metal
IP65
Front Maintenance
-20°C~50°C
≥100000
Specifications
